Integrated & In-Frame Battery Cases

Hidden housings that sit inside the down-tube, plus conversion kits with aluminium-alloy reinforcement.

21 models 36 V – 72 V 18650 / 21700 MOQ 1 piece

Showing the 21 models with a full spec page. The complete range of 21 is shown below. Every one is an empty shell — you supply cells, BMS and harness. Measured openings and cell ceilings for every model: see the full dimensions table.

How many Integrated empty battery cases are there?

21 — every one with its own spec page and a measured drawing. Every in-frame housing we mould is listed below. All are empty housings: no cells, no BMS.

ModelCellsCommon configurationsOpening / sizeFitmentMaterialVoltage

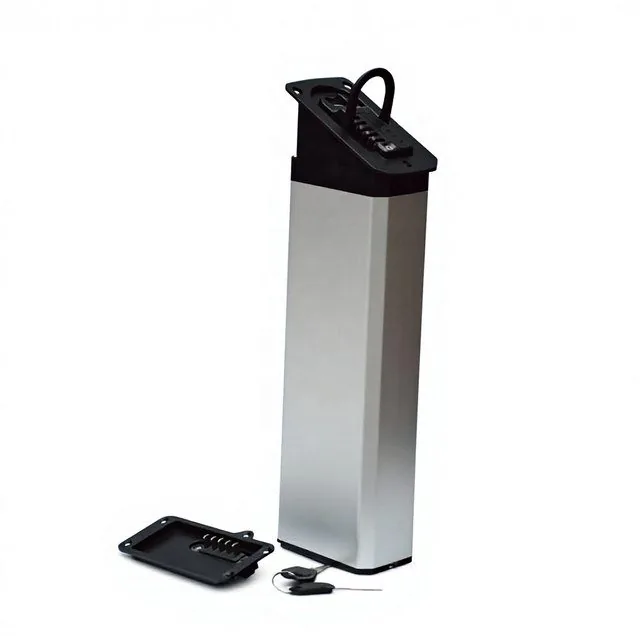

ALX00318650 — 40 cells18650: 10S4P · 20S2P · 13S3P · 16S2PTube length 305 mm Battery box 88 × 47 mm Body 104.8 × 46.5 mm—Aluminium alloy36 V – 72 V
ALX00618650 — 40 / 50 / 52 cells · 21700 — 26 cells18650: 13S4P · 10S5P · 16S3P · 14S3P · 21700: 13S2P · 10S2PTube length 305 / 345 / 365-367 / 344 mm Battery box 102.2 × 60.2 mmFrame tube 109 × 67 mmABS36 V – 72 V
ALX00918650 — 75 cells · 21700 — 40 cells18650: 10S7P · 14S5P · 13S5P · 16S4P · 21700: 10S4P · 20S2P · 13S3P · 16S2PTube length 345 mm Battery box 114.2 × 58 mmFrame tube 121 × 65 mmABS36 V – 72 V
ALX01118650 — 30 / 40 cells18650: 10S4P · 20S2P · 13S3P · 16S2PTube length 345 mm Battery box 88 × 40 mmFrame tube 94.8 × 47 mmABS36 V – 72 V
ALX01418650 — 30 / 40 cells18650: 10S4P · 20S2P · 13S3P · 16S2PTube length 280-290 / 345 mm Battery box 88 × 40 mmFrame tube 94.8 × 47 mmABS36 V – 72 V

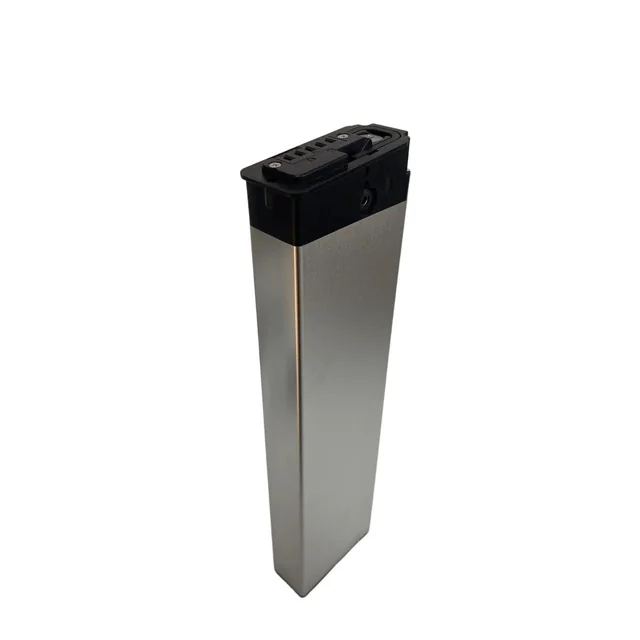

ALX02918650 — 40 / 50 / 52 cells · 21700 — 26 cells18650: 13S4P · 10S5P · 16S3P · 14S3P · 21700: 13S2P · 10S2PTube length 305 / 345 / 365-367 / 344 mm—ABS36 V – 72 V
ALX05518650 — 52 / 65 cells18650: 13S5P · 16S4P · 10S6P · 20S3PTube length 305 / 345 mm—ABS36 V – 72 V

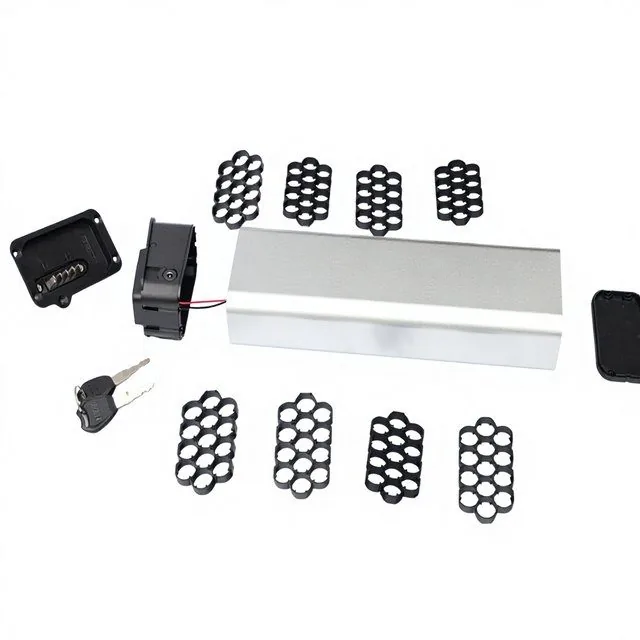

ALX05618650 — 52 / 65 cells18650: 13S5P · 16S4P · 10S6P · 20S3PTube length 305 / 345 mm Battery box 102.2 × 60.2 mmFrame tube 109 × 67 mmABS36 V – 72 V
ALX06018650 — 52 / 65 cells18650: 13S5P · 16S4P · 10S6P · 20S3PTube length 305 / 345 mm Battery box 102.2 × 60.2 mmFrame tube 109 × 67 mmAluminium alloy36 V – 72 V
ALX060B18650 — 52 / 65 cells · 21700 — up to ~43 cells18650: 13S5P · 16S4P · 10S6P · 20S3P · 21700 (~): 14S3P · 10S4P · 20S2P · 13S3PTube length 405 mm Battery box 102.2 × 60.2 mm—ABS36 V – 72 V

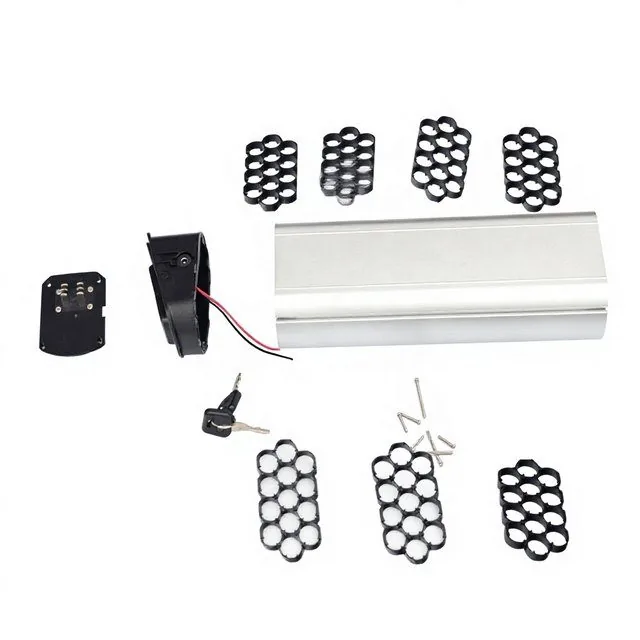

ALX07621700 — 20 cells21700: 10S2PTube length 302 mm Body 52 mm × 302 mmEnd cap 71.44 × 22.5 mmABS36 V – 72 V
ALX07918650 — 52 cells · 21700 — 40 cells18650: 13S4P · 10S5P · 16S3P · 14S3P · 21700: 10S4P · 20S2P · 13S3P · 16S2PTube length 345 / 370 mm Battery box 93.4 × 60 mmFrame tube 100 × 66.8 mmABS36 V – 72 V
ALX08418650 — 52 cells · 21700 — 40 cells18650: 13S4P · 10S5P · 16S3P · 14S3P · 21700: 10S4P · 20S2P · 13S3P · 16S2PTube length 345 / 370 mm Battery box 93.4 × 60 mmFrame tube 100 × 66.8 mmABS36 V – 72 V

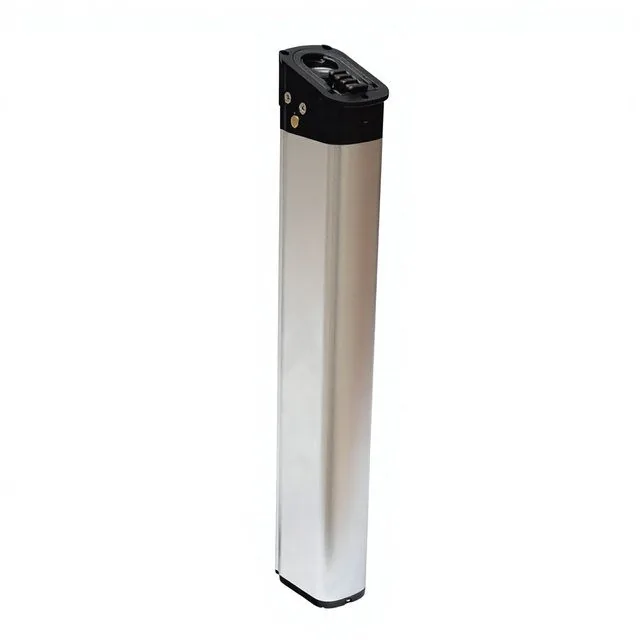

ALX09518650 — 20 / 30 cells18650: 10S3P · 14S2P · 13S2PTube length 285 / 350 mm Battery box 64.83 × 43.7 mmFrame tube 90 × 53.07 mmAluminium alloy36 V – 72 V
ALX10618650 — 65 / 78 cells · 21700 — 52 cells18650: 13S6P · 10S7P · 14S5P · 16S4P · 21700: 13S4P · 10S5P · 16S3P · 14S3PTube length 345 / 370 / 345 mm Battery box 110 × 67.8 mmFrame tube 117 × 74.8 mmABS + PC36 V – 72 V
ALX10718650 — 40 / 50 / 52 cells · 21700 — 26 cells18650: 13S4P · 10S5P · 16S3P · 14S3P · 21700: 13S2P · 10S2PTube length 305 / 345 / 365-367 / 344 mm Battery box 102.2 × 43 mmFrame tube 109 × 50 mmABS + PC36 V – 72 V
ALX10818650 — 65 / 78 cells · 21700 — 52 cells18650: 13S6P · 10S7P · 14S5P · 16S4P · 21700: 13S4P · 10S5P · 16S3P · 14S3PTube length 345 / 370 / 345 mm Battery box 110 × 67.8 mmFrame tube 117 × 74.8 mmAluminium alloy36 V – 72 V
ALX108B18650 — 75 / 78 cells · 21700 — 56 cells18650: 13S6P · 10S7P · 14S5P · 16S4P · 21700: 14S4P · 13S4P · 10S5P · 16S3PTube length 345 / 370 / 360 mm Battery box 110 × 67.8 mm—ABS36 V – 72 V

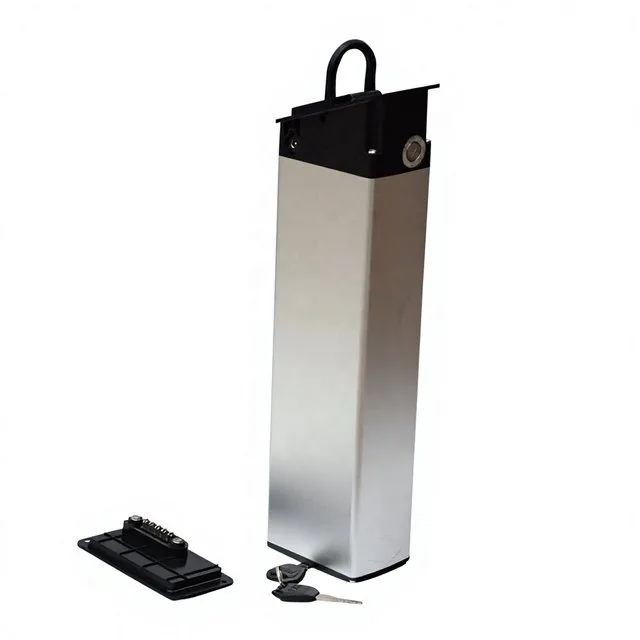

ALX108C18650 — 65 / 78 cells · 21700 — 52 cells18650: 13S6P · 10S7P · 14S5P · 16S4P · 21700: 13S4P · 10S5P · 16S3P · 14S3PBattery box 110 × 67.8 mm—ABS36 V – 72 V
ALX12418650 — 40 / 50 / 52 cells · 21700 — 26 cells18650: 13S4P · 10S5P · 16S3P · 14S3P · 21700: 13S2P · 10S2PTube length 305 / 345 / 365-367 / 344 mm Battery box 102.2 × 43 mmFrame tube 109 × 50 mmABS36 V – 72 V
ALX13118650 — 65 / 78 cells · 21700 — 52 cells18650: 13S6P · 10S7P · 14S5P · 16S4P · 21700: 13S4P · 10S5P · 16S3P · 14S3PTube length 345 / 370 / 345 mm Battery box 110 × 67.8 mmFrame tube 117 × 74.8 mmABS36 V – 72 V
About this series

Why do assemblers choose an Integrated case?

21 Integrated models across 36 V – 72 V systems, on 18650 and 21700 cells — empty shells, MOQ one piece. Hidden housings that sit inside the down-tube, plus conversion kits with aluminium-alloy reinforcement.

Integrated housings disappear into the frame. There is no visible case on the down-tube — the pack is inserted through an opening and closed with a cover that matches the frame line. The format is used mostly on folding bikes, where the housing folds with the frame, and increasingly on premium and city e-bikes where the silhouette stays clean.

Because the housing geometry has to match the frame, most of this range is made to a custom internal envelope. Send the frame drawing or the space you have and we will confirm whether a current model fits or whether we open a mould.

Aluminium alloy and aluminium-reinforced ABS/PC constructions are used here rather than plain plastic, because an in-frame housing carries structural loads the external cases do not.

Also known as: buyers also call these internal, hidden or semi-integrated battery cases. Catalogue names vary — the frame opening is what decides the fit, so send the envelope drawing and we will confirm it the same day.

  • Fully hidden fitment — No visible hardware when the cover is closed.
  • Aluminium and reinforced ABS/PC — Built for structural loads, not just cover duty.
  • Custom internal envelope — Most models are run to your drawing.
  • Mould opening available — Where nothing fits, we quote a new tool.
Get a Quote Compare all six formats
