Rear Rack Battery Cases

Flat rack-mounted housings for cargo, delivery and long-tail builds — to 104 cells, without widening the bike.

15 models 36 V – 72 V 18650 / 21700 MOQ 1 piece

Showing the 15 models with a full spec page. The complete range of 15 is shown below. Every one is an empty shell — you supply cells, BMS and harness. Measured openings and cell ceilings for every model: see the full dimensions table.

How many Rear Rack empty battery cases are there?

15 — every one with its own spec page and a measured drawing. Every rack-mounted housing we mould is listed below. All are empty housings: no cells, no BMS.

ModelCellsCommon configurationsOpening / sizeFitmentMaterialVoltage
ALX03218650 — 60 cells · 21700 — 52 cells18650: 10S6P · 20S3P · 14S4P · 13S4P · 21700: 13S4P · 10S5P · 16S3P · 14S3P—Rear Rack——
ALX033——Tube length 310 mmRear Rack——
ALX048——Tube length 285 / 325 mmRear Rack——
ALX065——Tube length 325 mmRear Rack——
ALX06918650 — 50 cells · 21700 — 40 cells18650: 10S5P · 16S3P · 14S3P · 20S2P · 21700: 10S4P · 20S2P · 13S3P · 16S2P—Rear Rack——

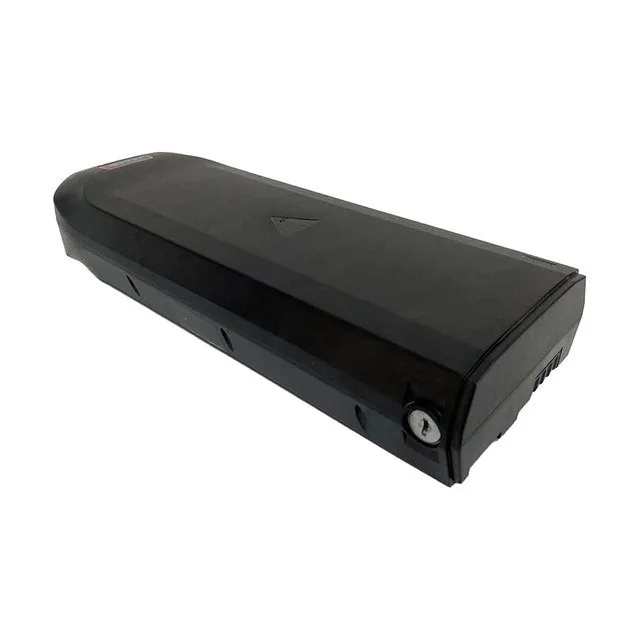

ALX069B18650 — 65 cells · 21700 — 40 cells18650: 13S5P · 16S4P · 10S6P · 20S3P · 21700: 10S4P · 20S2P · 13S3P · 16S2P—Rear Rack——

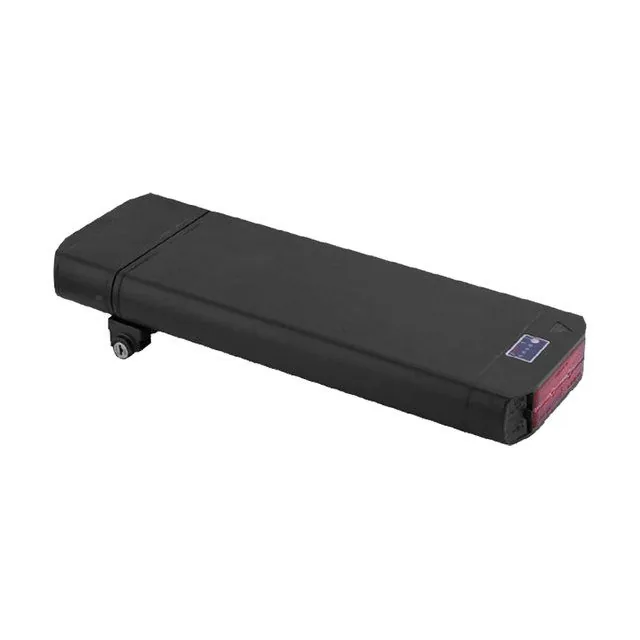

ALX07818650 — 52 cells · 21700 — 40 cells18650: 13S4P · 10S5P · 16S3P · 14S3P · 21700: 10S4P · 20S2P · 13S3P · 16S2P—Rear Rack——

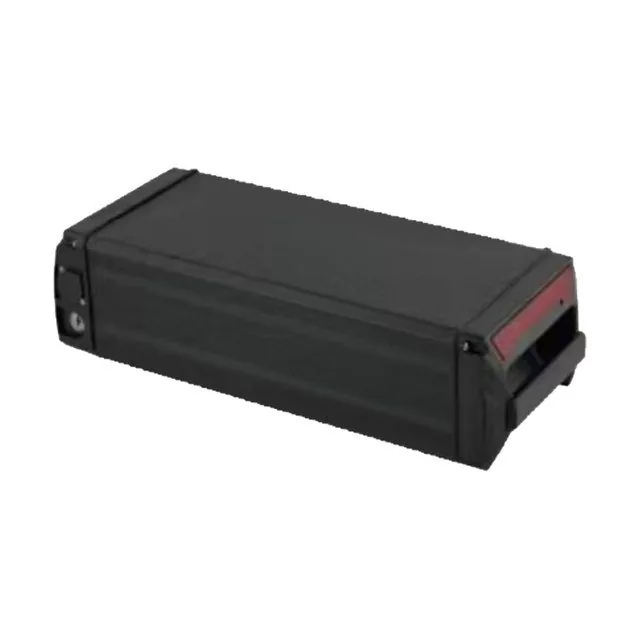

ALX094——Tube length 270 / 325 mmRear Rack——

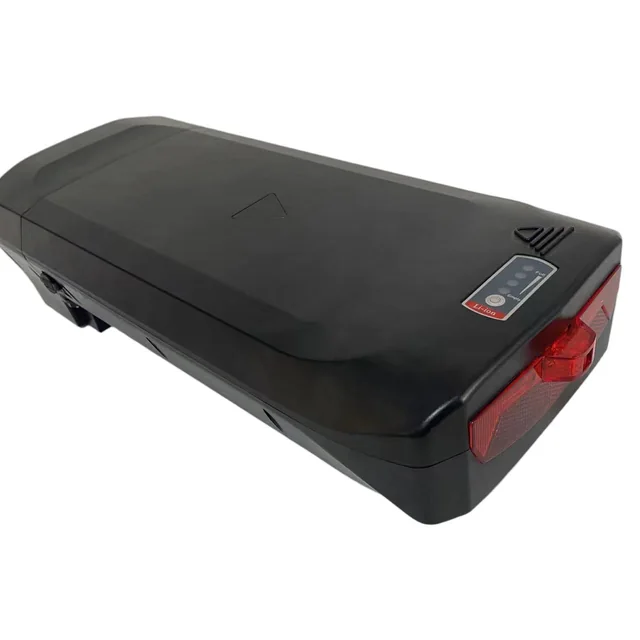

ALX102B18650 — 52 cells · 21700 — 40 cells18650: 13S4P · 10S5P · 16S3P · 14S3P · 21700: 10S4P · 20S2P · 13S3P · 16S2P——ABS36 V – 72 V

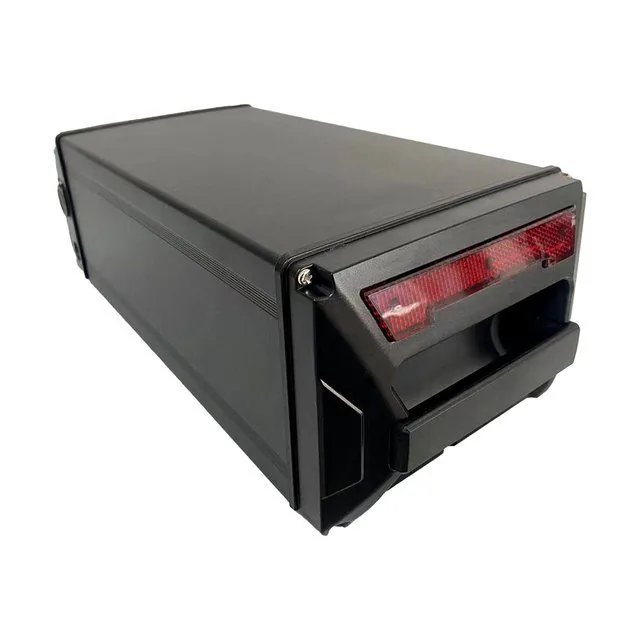

ALX103———Rear Rack——

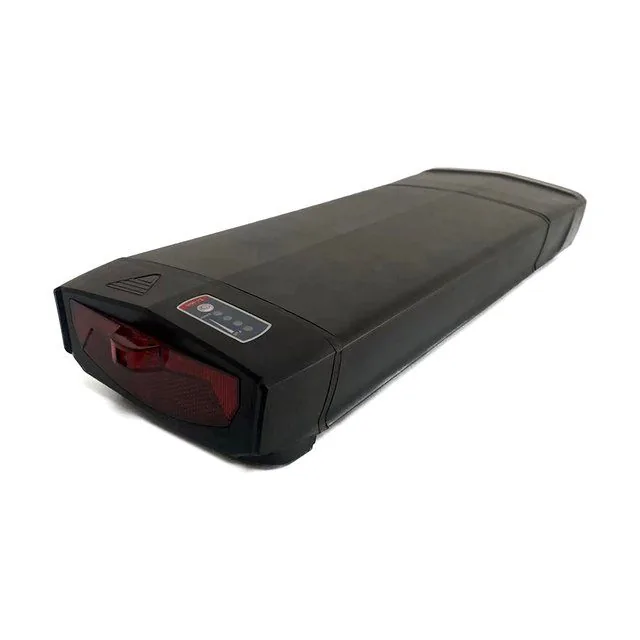

ALX114A18650 — 52 / 65 cells · 21700 — 52 cells18650: 13S5P · 16S4P · 10S6P · 20S3P · 21700: 13S4P · 10S5P · 16S3P · 14S3P—Rear Rack——

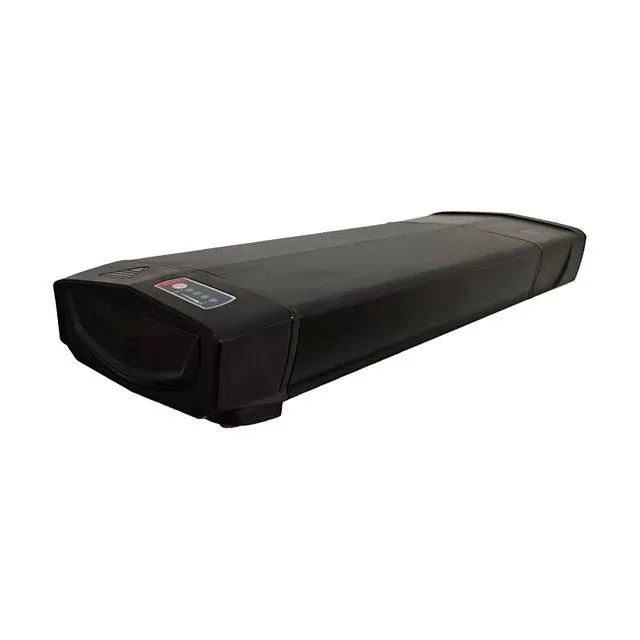

ALX114B18650 — 52 / 65 cells · 21700 — 52 cells18650: 13S5P · 16S4P · 10S6P · 20S3P · 21700: 13S4P · 10S5P · 16S3P · 14S3PTube length 275 / 335 mmRear Rack——

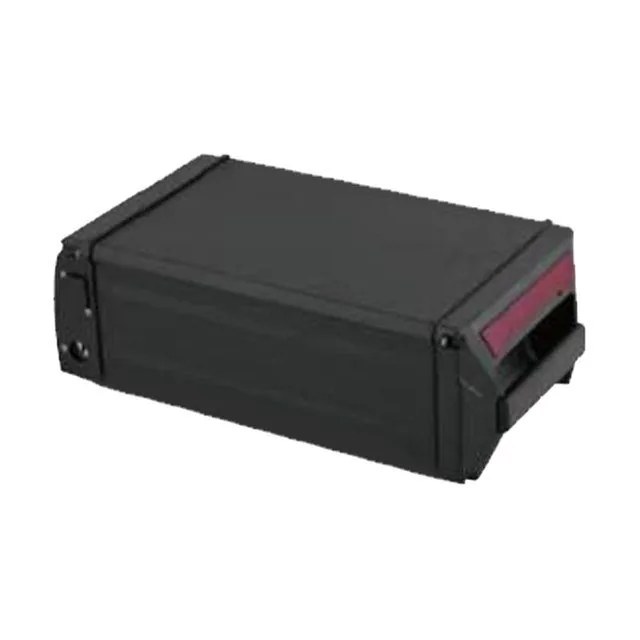

ALX128——Tube length 270 mmRear Rack——

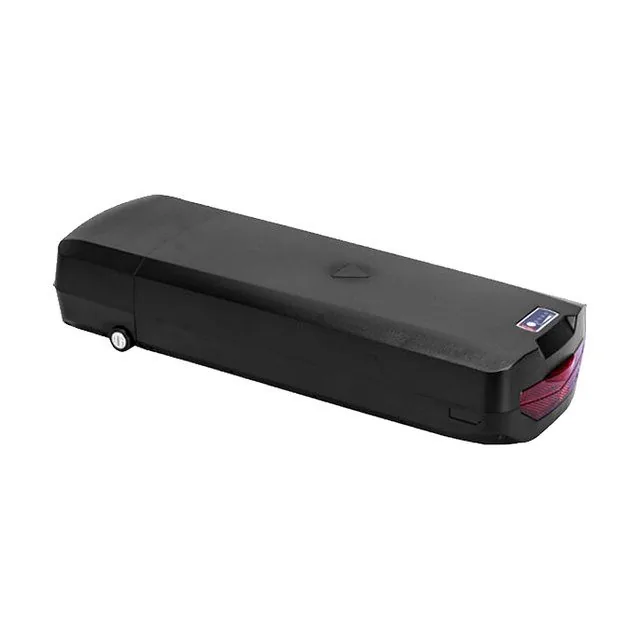

ALX166A18650 — 104 cells · 21700 — up to ~80 cells18650: 13S8P · 10S10P · 20S5P · 14S7P · 21700 (~): 10S8P · 16S5P · 20S4P · 13S6P—Rear Rack——
ALX166B18650 — 104 cells · 21700 — 78 cells18650: 13S8P · 10S10P · 20S5P · 14S7P · 21700: 13S6P · 10S7P · 14S5P · 16S4P—Rear Rack——
About this series

Why do assemblers choose a Rear Rack case?

15 Rear Rack models across 36 V – 72 V systems, on 18650 and 21700 cells — empty shells, MOQ one piece. Flat rack-mounted housings for cargo, delivery and long-tail builds — to 104 cells, without widening the bike.

Rear-rack housings mount on the carrier above the back wheel. They suit cargo bikes, delivery fleets and long-tail frames where there is no usable down-tube space, and a flat body carries more cells than a frame-mounted case of the same footprint.

This is the family that gets specified for delivery and ride-hailing fleets, where the pack has to be swapped without tools and the bike still has to look ordinary. Our rack bodies run from a 310 mm short form up to 616 mm for long-tail frames, in both all-plastic and aluminium-tube construction.

Fourteen bodies are tooled. Where a rack needs a geometry we do not hold, we quote a mould — bring the carrier drawing or the space you have between the rails.

Also known as: also searched as a rear carrier battery case or rack battery box. Matching an existing rack? The rail spacing and the controller cavity decide the fit — both are on each model’s drawing.

  • Fourteen tooled bodies — 310 mm short form through to 616 mm long-tail.
  • To 104 x 18650 or 78 x 21700 — The highest cell count of any family we mould.
  • Plastic or aluminium tube — Metal where the load path runs, plastic where it does not.
  • Tool-free pack swap — Built for delivery fleets rather than weekend riders.
Get a Quote Compare all six formats

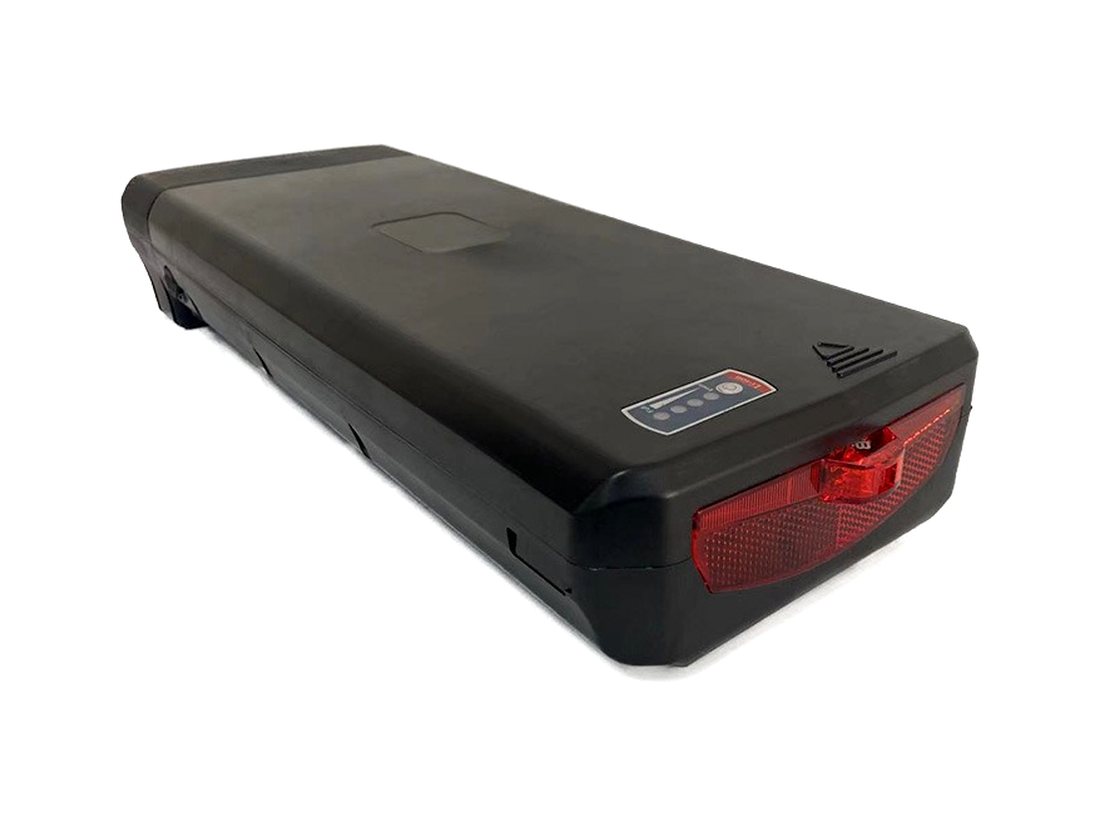

Rack-mounted e-bike battery case, ALX032, shown from the side
Rack-mounted housingFlat body · 310 mm to 616 mm long
Other fitments

Which mounting format fits your frame instead?

Six mountings, six jobs: Hailong and Silver Fish dock on the down-tube, integrated moulds into the frame, downtube suits standard tubes, rear rack carries cargo, and water bottle fits small packs. Choose by frame first, then by cell count.

Hailong Battery Cases

The universal fitment. Waterproof ABS and PC+ABS shells with key lock, cable exit and mounting kit options, sized for 18650 or 21700 packs.

Silver Fish Battery Cases

Tapered shells that slide into a frame or seat-post carrier — the retrofit standard for folding bikes, mountain frames and conversion builds.

Integrated & In-Frame Battery Cases

Hidden housings that sit inside the down-tube, plus conversion kits with aluminium-alloy reinforcement.

Downtube Battery Cases

Bolt-on housings that mount above or below the down-tube, taking 18650 packs to 104 cells. The largest family we hold tooling for.

Water Bottle Battery Cases

Mounts on standard bottle bosses — the lowest-cost way to add range to a frame with no down-tube space.
Ten Haitian injection moulding machines running in a line at the ALX factory in Guangzhou
Moulded in house10 Haitian injection moulding machines
Finished e-bike battery cases racked ready for dispatch
Racked and readyEmpty shells, inspected before dispatch
Start here

Tell us your voltage, cell type and dimensions

That is all we need to point you at the right case. Quoted within five hours, MOQ one piece.

Get Your Quote

Common questions about Rear Rack

How many cells fit in a Rear Rack battery case?
Across our 15 Rear Rack housings the largest mould takes 104 cells on 18650 and 80 on 21700 — the same mould physically holds fewer of the fatter 21700 format. Cell count per model is listed on each product page.
What voltages do Rear Rack cases cover?
Across the 15 models the range spans 36 V to 72 V. Voltage follows the cell count you build to — 10S is 36 V, 13S is 48 V, 14S is 52 V — so pick the case by cells, not by the label voltage.
Can I order a single Rear Rack case?
Yes — MOQ is one piece on every model in this series, quoted within five hours. Single-piece orders ship from stock for the common moulds; rare configurations are moulded to order.
How much can a rear rack case carry?
The mount is the limit, not the mould — a standard rack carries 25 kg. Our rear-rack housings are specified at 25 kg loaded, and we quote the mounting hardware separately when your rack is not the common pattern.
